1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

FOB Reference Price:Get Latest Price
US $300-550 / Pieces | 20 Piece/Pieces :--website---www.orientpower.asia (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Orient Power/zhuhai OTE
Model Number:
OPNF1000
Type:
Nickel iron NIFE NI-FE Batteries Battery
Nominal Voltage:
1.2V
Size:
Prismatic
Nominal Capacity:
1200Ah
Description:
http://www.orientpower.asia/product/detail/id/169
Screw Thread of Terminal poles:
3xM20
Container material:
MBS
Norminal voltage:
1.2V
Floating charge voltage:
1.45-1.5V/cell
operating temperature:
-40 to +60 degree C
over discharge performance:
great
operation life:
40 year years life
NIFE battery capacity range:
10--1200Ah
Supply Ability
Supply Ability:
2000000 Piece/Pieces per Week :--Email---orient2@orientpower.asia
Packaging & Delivery
Packaging Details
Quality ocean standard wooden case
Port
Shenzhen
Lead Time :
35 days after confirm the deposit or LC
 ORIENT POWER /ZHU HAI OTE COMPANY PRESENT.
1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

CONTACT US: www.orientpower.asia
Product Description

Military quality standard long life NiFe Solar storage nickel iron battery 1.2V1200Ah

Voltage: 1.2V

Capacity: 1200Ah



PEMAX. DIM(mm)Max. weightv(not filled) (kg)Max.weight (filled) KgCasing MaterialTerminal
Length (L)Width (W)Hight (H)
OPNF1038841280.60.7PP/MBSM6
OPNF17321132230.91.2PP/MBSM6
OPNF203211322311.2PP/MBSM6
OPNF22321132231.11.25PP/MBSM6
OPNF25321132231.151.3PP/MBSM6
OPNF30681342451.72.55PP/MBSM10X1
OPNF40681342452.12.85PP/MBSM10X1
OPNF45681342452.43PP/MBSM10X1
OPNF50681342452.53.2PP/MBSM10X1
OPNF60681342453.23.6PP/MBSM10X1
OPNF70801413703.85.7PP/MBSM10X1
OPNF808014137045.8PP/MBSM10X1
OPNF90801413704.26PP/MBSM10X1
OPNF100801413704.56.2PP/MBSM10X1
OPNF115801413704.96.3PP/MBSM10X1
OPNF1208014137056.5PP/MBSM10X1
OPNF125531904026.5 PPM10X1
OPNF130801413705.36.5PP/MBSM10X1
OPNF1359214136567.8PPM16X1.5
OPNF1409214136568PPM16X1.5
OPNF15010616434579PP/MBSM20
OPNF1651061643457.29.5PP/MBSM20
OPNF1801061643457.510PP/MBSM20
OPNF200106164345811PP/MBSM20
OPNF2301641673459.513PP/MBSM20
OPNF2501001704501113.5PPM20
OPNF2501382764201318.5PP/MBS2xM16
OPNF30013827645014.520.5PP/MBS2xM16
OPNF3201382764901626.5PP2xM16
OPNF34016220045015.522PP2xM16
OPNF3501382764501621PP/MBS2xM16
OPNF36513827645016.522PP/MBS2xM16
OPNF4001382764501723PP/MBS2xM16
OPNF42013827645018.524PP/MBS2xM16
OPNF45013827645019.524.5PP/MBS2xM16
OPNF5001382764902027PP2xM16
OPNF6001762915102737.5MBS2xM20
OPNF7001762915102939MBS2xM20
OPNF8001863985703959MBS3xM20
OPNF9001863985704160MBS3xM20
OPNF10001863985704461MBS3xM20
OPNF11001863985704663MBS3xM20
OPNF12001863985704966MBS3xM20





  Characteristic

  • Excellent charging efficiency and smooth discharge voltage
  • High reliability without sudden death
  • Ability to withstand ultra-high and ultra-low environmental temperatures
  • Withstand physical and mechanical abuses
  • Exceptionally long & reliable service life
  • Pollution-free,total green energy
  • low Self-discharging
  • No emission of corrosive gases, Safe from flame & explosion
  • Pollution-free and excellent mechanical strength
  • Convenient for installation and low maintenance
  • Comply with SGS and GOST standard.
  • Availability to design and manufacture other model according to user's requirements



NF series solar NiFe batteries are suitable for all solar photovoltaic power systems. They are widely used as storage power supply for solar photovoltaic systems, offshore oil platforms, railway transportation, crossing guards lighting, signaling, isolated BTS station, cathodic protection for pipelines and radio navigation systems.

NF series solar Ni-Fe batteries can last longer than 20 years if they are operated with the commercial and residential buildings recommended practice.

Benefits of NF series NiFe Battery:

1. Environmental friendliness(no lead, cadmium, or acid and is highly recyclable).

2. Long cycling life(Maximum service life can reach 20 years or more, if operated correctly).

3. Able to withstand abuse and wide temperature variation.

4. Resistant to withstand failure of electronic control systems.

5. Higher charge ratio and utilization ratio.

6. Low transportation and installation cost.

7. Low maintenance.

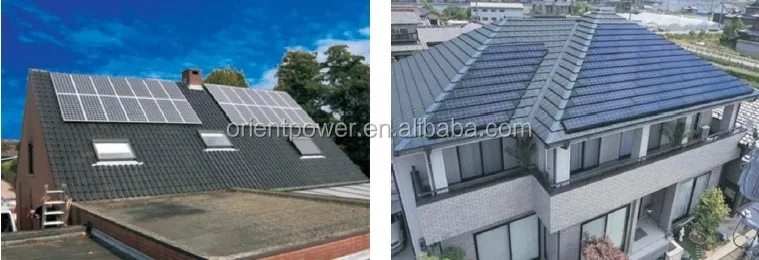

NIFE battery for Photovoltaic Applications:

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

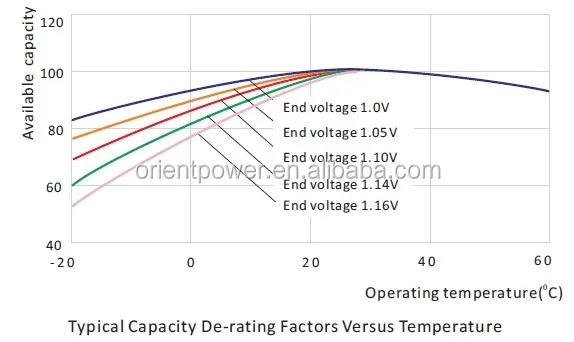

Effect of temperature on performance:

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

Cycling:

 1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

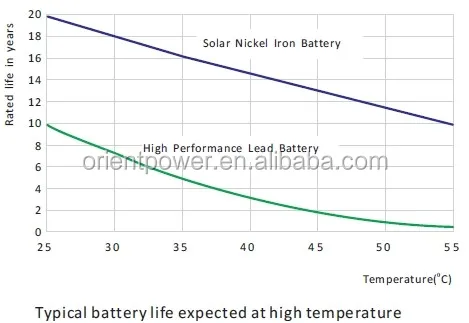

Effect of Temperature on Lifetime(compare with lead acid battery):

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

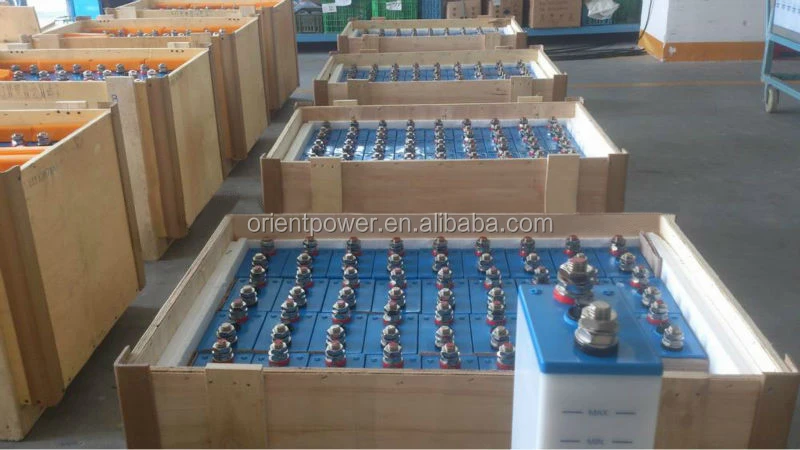

Packaging & Shipping

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale


FAQ

   1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale

CONTACT US NOW

1000Ah solar nickel ion battery standard 20 years Life 11000 cycle Nickel Iron Battery for sale
